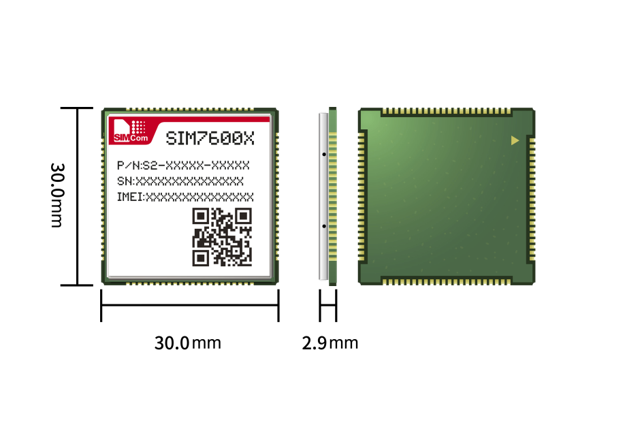

SIM7600X

Form Factor

LCC, 87PIN

LCC, 87PIN

LCC, 87PIN

Dimensions(mm)

30.0*30.0*2.9

30.0*30.0*2.9

30.0*30.0*2.9

Frequency Bands

LTE-FDD

B2/B4/B12

B1/B2/B3/B4/B5/B7/B8/B28/B66

B1/B3/B5/B7/B8/B20

LTE-TDD

B40

B38/B40/B41

WCDMA

B2/B5

B1/B2/B5/B8

B1/B5/B8

GSM

850/900/1800/1900MHz

900/1800MHz

GNSS

o

o

o

Temperature

-40℃ ~ +85℃

-40℃ ~ +85℃

-40℃ ~ +85℃

Electrical Features

Supply Voltage(V)

3.4~ 4.2

3.4~ 4.2

3.4~ 4.2

Power Consumption

(mA)

LTE

2.3

2.3

2.3

WCDMA,

DRX=9

3.3

3.3

3.3

GSM, BS_PA_

MFRMS=2

2.8

2.8

2.8

Data Transfer

LTE(Mbps)

10(DL)/5(UL)

10(DL)/5(UL)

10(DL)/5(UL)

HSPA+(Mbps)

42(DL)/5.76(UL)

42(DL)/5.76(UL)

42(DL)/5.76(UL)

WCDMA(Kbps)

384(DL)/384(UL)

384(DL)/384(UL)

384(DL)/384(UL)

GPRS/EDGE(Kbps)

236.8(DL)/236.8(UL)

236.8(DL)/236.8(UL)

Software Features

Protocol

TCP/IP/IPV4/IPV6/

Multi-PDP/FTP/FTPS/HTTP/

HTTPS/DNS

TCP/IP/IPV4/IPV6/Multi-PDP/

FTP/FTPS/HTTP/HTTPS/DNS

TCP/IP/IPV4/IPV6/

Multi-PDP/FTP/FTPS/

HTTP/HTTPS/DNS

TLS

●

●

●

File System

●

●

●

Audio Record/Play

o

o

o

TTS

o

o

o

DTMF

o

o

o

LBS

●

●

●

FOTA

●

●

●

Jamming Detection

●

●

●

Android RIL

Android 5.0/6.0/7.0/8.0/9.0

Android 5.0/6.0/7.0/8.0/9.0

Android 5.0/6.0/7.0/8.0/9.0

USB Driver

Microsoft Windows 7/8/10

Linux/Android

Microsoft Windows 7/8/10

Linux/Android

Microsoft Windows 7/8/10

Linux/Android

WWAN (RNDIS)

●

●

●

ECM

●

●

●

MBIM

Win8/Win10

Win8/Win10

Win8/Win10

NDIS

Linux/Windows 7/8/10

Linux/Windows 7/8/10

Linux/Windows 7/8/10

Firmware Upgrade

USB/FOTA

USB/FOTA

USB/FOTA

Interfaces

SIM Card

1.8V/3.0V

1.8V/3.0V

1.8V/3.0V

UART

●

●

●

USB

●

●

●

PCM

o

o

o

ADC

●

●

●

SD Card

●

●

●

SPI

o

o

o

I2C

●

●

●

Diversity Receiver

●

●

●

Certification

Regulatory

FCC/PTCRB/RoHS/REACH/IC

CE-RED/ACMA/FCC/ RoHS/REACH/Anatel

CE-RED/RoHS/REACH/ IMDA/GCF

Carrier

AT&T/Rogers

Telstra

DTAG/Vodafone
