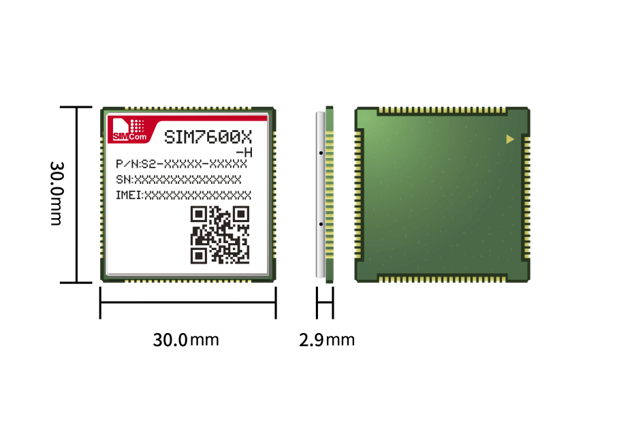

SIM7600-H系列是LTE第4类模块，支持LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE等无线通信模式。它支持最大150Mbps下行链路速率和50Mbps上行链路速率。SIM7600-H系列采用LCC1外形尺寸，与SIM5320/SIM5360系列（UMTS/HSPA+模块）和SIM7600系列（LTE模块）兼容，从而实现了从3G产品到LTE产品的平滑迁移，并极大地促进了针对客户需求的更兼容的产品设计。SIM7600-H系列集成了多个卫星高精度定位GNSS系统，具有多个内置网络协议，支持主要操作系统的驱动程序（适用于Windows、Linux和Android等的USB驱动程序）和软件功能，AT命令与SIM7500/SIM7600系列模块兼容。同时，SIM7600-H系列集成了主要的工业标准接口，具有强大的扩展性，包括UART、USB、I2C、GPIO等丰富的接口，适用于远程信息处理、监控设备、CPE、工业路由器和远程诊断等主要物联网应用
| Product | SIM7600A-H | SIM7600V-H | SIM7600SA-H | SIM7600JC-H | SIM7600E-H | SIM7600NA-H | SIM7600G-H R2 | |
| Form Factor | LCC, 87PIN | LCC, 87PIN | LCC, 87PIN | LCC, 87PIN | LCC, 87PIN | LCC+LGA, 119PIN | LCC+LGA, 119PIN | |
| Dimensions(mm) | 30.0*30.0*2.9 | 30.0*30.0*2.9 | 30.0*30.0*2.9 | 30.0*30.0*2.9 | 30.0*30.0*2.9 | 30.0*30.0*2.9 | 30.0*30.0*2.9 | |
| Frequency Bands | LTE-FDD | B2/B4/B12 | B2/B4/B5/B13 | B1/B2/B3/B4/B5/B7/ B8/B28/B66 | B1/B3/B8/B18/B19/B26 | B1/B3/B5/B7/B8/B20 | B2/B4/B5/B12/B13/ B14/B25/B26/B66/B71 | B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66 |
| LTE-TDD | B40 | B38/B40/B41 | B41 | B34/B38/B39/ B40/B41 | ||||
| WCDMA | B2/B5 | B1/B2/B5/B8 | B1/B5/B8 | B1/B2/B4/B5/ B6/B8/B19 | ||||
| GSM | 850/900/1800/1900MHz | 900/1800MHz | 850/900/1800/ 1900MHz | |||||
| GNSS | o | o | o | o | o | o | o | |
| Temperature GNSS | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | |
| Electrical Features | ||||||||
| Supply Voltage(V) | 3.4~ 4.2 | 3.4~ 4.2 | 3.4~ 4.2 | 3.4~ 4.2 | 3.4~ 4.2 | 3.4~ 4.2 | 3.4~ 4.2 | |
| Power Consumption(mA) | LTE | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| WCDMA, DRX=9 | 3.3 | 3.3 | 3.3 | 3.3 | ||||
| GSM,BS_PA_MFRMS=2 | 2.8 | 2.8 | 2.8 | |||||
| Data Transfer | ||||||||
| LTE(Mbps) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | |
| HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | ||||
| WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | ||||
| GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |||||
| Software Features | ||||||||
| Protocol | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | |
| TLS | ● | ● | ● | ● | ● | ● | ● | |
| File System | ● | ● | ● | ● | ● | ● | ● | |
| Audio Record/Play | o | o | o | o | o | o | o | |
| TTS | o | o | o | o | o | o | o | |
| DTMF | o | o | o | o | o | o | o | |
| LBS | ● | ● | ● | ● | ● | ● | ● | |
| FOTA | ● | ● | ● | ● | ● | ● | ● | |
| Jamming Detection | ● | ● | ● | ● | ● | ● | ● | |
| Android RIL | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | |
| USB Driver | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | |
| WWAN (RNDIS) | ● | ● | ● | ● | ● | ● | ● | |
| ECM | ● | ● | ● | ● | ● | ● | ● | |
| MBIM | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | |
| NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | |
| Open Linux | o | o | o | o | o | o | o | |
| Firmware Upgrade | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | |
| Interfaces | ||||||||
| SIM Card | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | |
| UART | ● | ● | ● | ● | ● | ● | ● | |
| USB | ● | ● | ● | ● | ● | ● | ● | |
| PCM | o | o | o | o | o | o | o | |
| ADC | ● | ● | ● | ● | ● | ● | ● | |
| SD Card | ● | ● | ● | ● | ● | ● | ● | |
| SPI | o | o | o | o | o | o | o | |
| I2C | ● | ● | ● | ● | ● | ● | ● | |
| Diversity Receiver | ● | ● | ● | ● | ● | ● | ● | |
| Certification | ||||||||
| Regulatory | FCC/PTCRB/IC/RoHS/ REACH | FCC/GCF/RoHS/REACH | CE-RED/ACMA/FCC/NCC/ RoHS/REACH/Anatel | Telec/JATE/RoHS/REACH | CE-RED/RoHS/REACH/ IMDA/GCF | FCC/IC/PTCRB/GCF/ RoHS/REACH | CE-RED/FCC/IC/RCM/CCC/ Telec/Jate/Anatel/NCC/IMDA*/ ICASA*/PTCRB/GCF/RoHS/ REACH | |
| Carrier | AT&T | Verizon | Docomo/Softbank | DTAG/Vodafone | AT&T*/Verizon*/T-mobile*/US Celluar* | AT&T*/Verizon*/T-mobile*/US Celluar*/Telstra* | ||
