SIM8202X-M2

封装方式

M.2

M.2

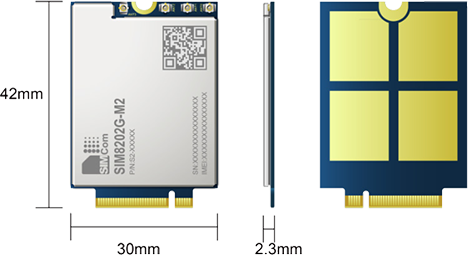

尺寸(mm)

42.0*30.0*2.3

42.0*30.0*2.3

支持频段

Sub-6G

n1/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n48/n71/n77/n78/n79

Sub-6G(NSA) n1/n3/n7/n20/n28/n41/n77/n78/n79

Sub-6G n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79

Sub-6G(NSA) n41/n77/n78/n79

Sub-6G(NSA)

n1/n3/n7/n20/n28/n41/n77/n78/n79

B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE-FDD

B1/B3/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B26/B28/B29/B71

B34/B38/B39/B40/B41/B42/B43/B48

LTE-TDD

B34/B38/B39/B40/B41/B42/B43/B48

●

WCDMA

B1/B3/B5/B8

B1/B2/B3/B4/B5/B8

定位

GPS L1/Galileo/QZSS/GPS L5/GLONASS/BeiDou/Compass

●

工作温度

-30℃ ~ +70℃

-30℃ ~ +70℃

电器属性

工作电压(V)

3.135 ~ 4.4

3.135 ~ 4.4

数据传输

Sub-6G

2.4Gbps(下行)/500Mbps(上行)

2.4Gbps(DL)/500Mbps(UL)

LTE

1Gbps(下行)/200Mbps(上行)

1Gbps(DL)/200Mbps(UL)

HSPA+

42Mbps (下行)/5.76Mbps(上行)

42Mbps (DL)/5.76Mbps(UL)

软件属性

支持协议

TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

TLS

●

●

文件系统

●

●

FOTA

●

●

Android RIL

Android 6/7/8/9

Android 6/7/8/9

USB Driver

Microsoft Windows Win7/Win8/Win10/Linux/Android

Microsoft Windows Win7/Win8/Win10/Linux/Android

MBIM

Win8/Win10

Win8/Win10

NDIS

Linux/Win7/Win8/Win10

Linux/Win7/Win8/Win10

固件升级

USB

USB

接口

SIM Card

1.8V/2.95V

1.8V/2.95V

USB

●

●

PCIe

●

PCM

●

●

I2C

●

●

UART

●

Diversity Receiver

●

认证

Regulatory

CE RED/RCM*/RoHS*/REACH*

CCC/JATE/TELEC/CE RED/SRRC*/CTA*/RoHS*/REACH*/CE*
