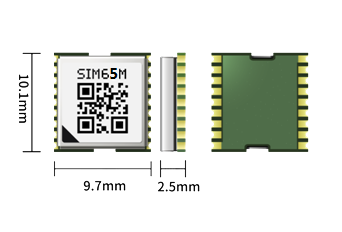

Mechanical data Dimensions 10.1*9.7*2.5mm Weight 0.5g Features Support GPS/GLONASS/BDS/Galileo/QZSS(L1 Band Receiver 1575.42MHz) Support EASYTM self-generated orbit prediction Support EPOTM orbit prediction Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS) Support Jamming Removing Low-noise amplifier has been integrated Certifications CE(PLAN) RoHS/REACH(PLAN) | Performance data Receiver type 47channels GNSS receiver Max. update rate 10Hz Sensitivity1： Tracking -166dBm Reacquisition -158dBm Cold starts -147dBm Time-To-First Fix2： Cold starts 30s Warm start 25s Hot starts 1s EPO Assist 15s Hot starts 1s Accuracy： Automatic Position3 2M Speed4 0.1m/s Operation temperature5 -40℃~+85 ℃ | Electrical data Power supply 2.8V~4.3V Backup power 2.3V~4.6V Power consumption2,6 Acquisition 18mA Tracking 18mA Sleep current 210uA Backup 20uA Antenna type Active and passive Antenna power External or internal VCC_RF Interfaces Serial interfaces UART Digital I/O Pulse-per-second (PPS) EINT0 input Protocols NMEA RTCM |
