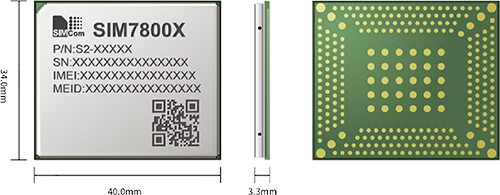

SIM7800系列是多频带LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO和双频GSM/GPRS/EDGE汽车级LTE第4类模块，支持最大150Mbps下行链路速率和50Mbps上行链路速率。SIM7800系列采用LGA外形尺寸，是汽车设备集成的理想选择。SIM7800系列根据IATF 16949:2016质量管理体系设计和制造，面向IoV（车联网）市场。它具有强大的扩展能力，具有丰富的接口，包括SGMII、UART、SDIO、I2C、SPI、GPIO等。SIM7800系列为客户的应用程序提供了极大的灵活性和易集成性，其在ESD和EMI保护方面的优异性能确保了在恶劣环境中的强大稳定性。
| Product | SIM7800CE | SIM7800E | |
| Form factor | LGA, 282 PIN | LGA, 282 PIN | |
| Dimensions(mm) | 34.0*40.0*3.1 | 34.0*40.0*3.1 | |
| Frequency Bands | LTE-FDD | B1/B3/B5/B8 | B1/B3/B5/B7/B8/B20 |
| LTE-TDD | B38/B39/B40/B41 | B38/B40/B41 | |
| WCDMA | B1/B8 | B1/B5/B8 | |
| TD-SCDMA | B34/B39 | ||
| EVDO/CDMA | BC0 | ||
| GSM | 900/1800 MHz | 900/1800 MHz | |
| GNSS | ● | ● | |
| Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |
| Electrical Features | |||
| Supply Voltage(V) | 3.3~ 4.2 | 3.3~ 4.2 | |
| Power Consumption(mA) | LTE-FDD | 1.8 | 1.8 |
| WCDMA, DRX=9 | 3.3 | 3.3 | |
| GSM,BS_PA_MFRMS=2 | 1.8 | 1.8 | |
| Data Transfer | |||
| LTE(Mbps) | 150 (DL)/50(UL) | 150 (DL)/50(UL) | |
| HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | |
| WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | |
| GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |
| Software Features | |||
| Protocol | TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/ HTTPS/DNS/NTP/PING/SSL | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS/NTP/PING/SSL | |
| eCall | ● | ● | |
| TLS | ● | ● | |
| File System | ● | ● | |
| Audio Record/Play | ● | ● | |
| TTS | ● | ● | |
| DTMF | ● | ● | |
| LBS | ● | ● | |
| FOTA | ● | ● | |
| Jamming Detection | ● | ● | |
| Security | SELinux/Trustzone/Secure boot | SELinux/Trustzone/Secure boot | |
| Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | |
| USB Driver | Microsoft Windows 7/8/10/Linux/Android | Microsoft Windows 7/8/10/Linux/Android | |
| WWAN (RNDIS)/ECM | ● | ● | |
| MBIM | Win8/Win10 | Win8/Win10 | |
| NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | |
| Open Linux | ● | ● | |
| Firmware Upgrade | USB/FOTA | USB/FOTA | |
| Wi-Fi/BT | 2.4G/5G/BLE4.2(with W59) | 2.4G/5G/BLE4.2(with W59) | |
| Interfaces | |||
| SIM Card | 1.8V/3.0V | 1.8V/3.0V | |
| UART | 3*UART | 3*UART | |
| USB | ● | ● | |
| HSIC | ● | ● | |
| I2S | ● | ● | |
| ADC | ● | ● | |
| SDIO | SDIO3.0(200MHz Max) | SDIO3.0(200MHz Max) | |
| SD Card | SD3.0(128G Max) | SD3.0(128G Max) | |
| SPI | ● | ● | |
| I2C | ● | ● | |
| SGMII | 10M/100M/1000M Ethernet | 10M/100M/1000M Ethernet | |
| Diversity Receiver | ● | ● | |
| Certification | |||
| Regulatory | 3C/SRRC/NAL*/RoHS*/REACH* | 3C/SRRC/NAL*/RoHS*/REACH* | |
