首页 > 产品中心 > SIMCom 芯讯通(代理) > LPWA模组
SIM7000X-JMS是支持LTE CAT-M1（eMTC）和NB-IoT高达375kbps数据传输的FPGA类型的LTE-FDD，TDD-LTE和四波段GPRS/边缘模块解决方案。它具有强大的扩展功能，具有丰富的接口，包括UART，USB2.0。该模块为客户的应用程序提供了很大的灵活性和易于集成。它专为在各种无线电传播条件下需要低延迟，中等吞吐量数据通信的应用而设计。由于性能，安全性和灵活性的独特组合，该模块非常适合M2M应用，如计量，远程医疗，资产跟踪，远程监控，电子健康，移动pos终端和共享自行车。
Product | SIM7000G-PCIE | SIM7000E-PCIE | SIM7000A-PCIE | SIM7000JC-PCIE | SIM7000C-PCIE | |
Form factor | PCIE, 52PIN | PCIE, 52PIN | PCIE, 52PIN | PCIE, 52PIN | PCIE, 52PIN | |

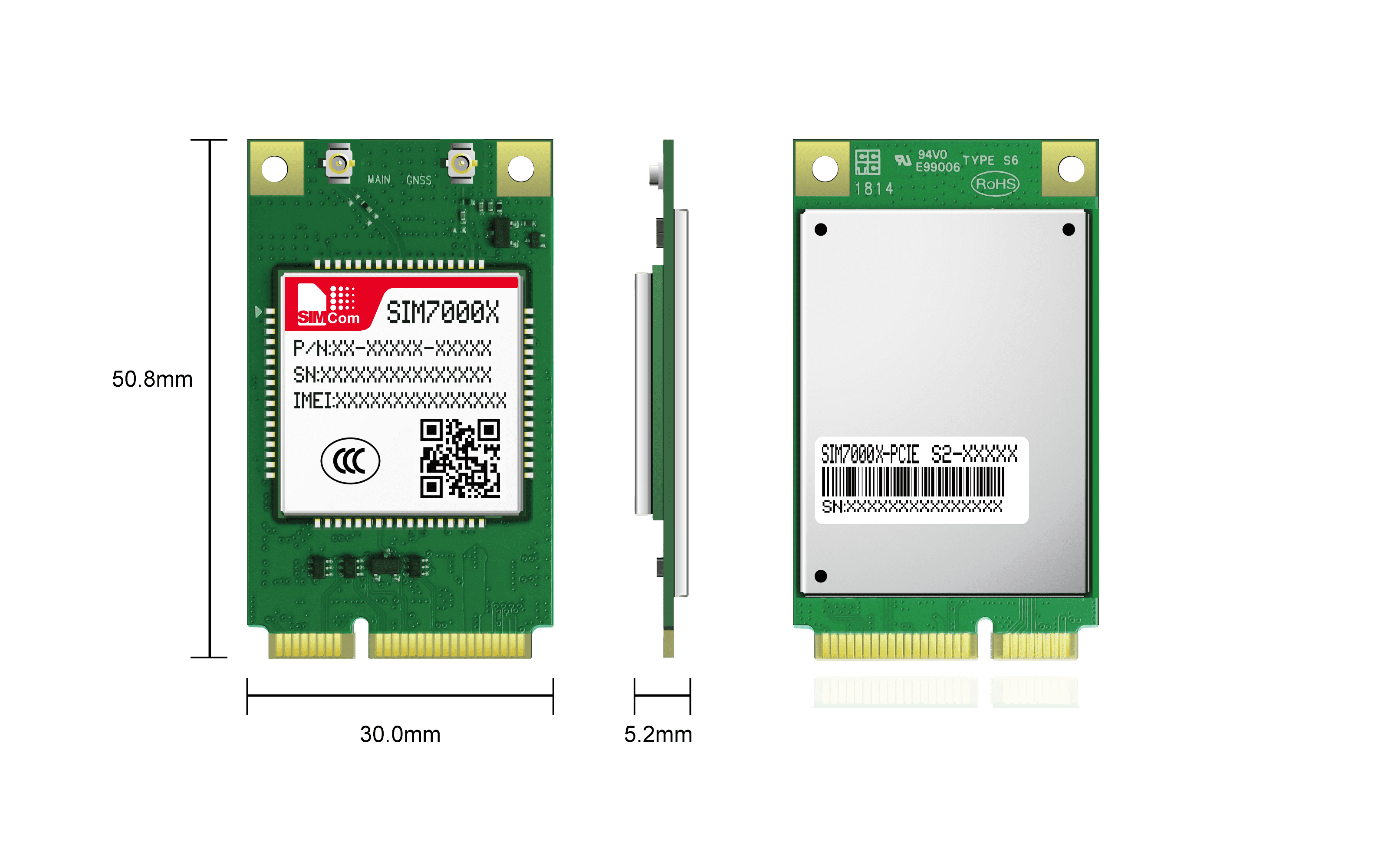

Dimensions(mm) | 50.8 X 30.0 X 5.2mm | 50.8 X 30.0 X 5.2mm | 50.8 X 30.0 X 5.2mm | 50.8 X 30.0 X 5.2mm | 50.8 X 30.0 X 5.2mm | |
Frequency Bands | Cat-M | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B26/B28/B39 | B3/B5/B8/B20/B28 | B2/B4/B12/B13 | B1/B3/B5/B8/B18/B19/B26 | B1/B3/B5/B8 |
Cat-NB | B1/B2/B3/B5/B8/B12/B13/B17/ B18/B19/B20/B26/B28 | B3/B5/B8/B20/B28 | B2/B4/B12/B13 | B1/B3/B5/B8/B18/B19/B26 | B1/B3/B5/B8 | |
GSM | 850/900/1800/1900MHz | 900/1800MHz | 900/1800MHz | |||
GNSS | o | o | o | o | o | |
Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |
Electrical Features | ||||||
Supply Voltage Range(V) | 3.3~ 4.3 | 3.3~ 4.3 | 3.3~ 4.3 | 3.3~ 4.3 | 3.3~ 4.3 | |
Power Consumption | Power Off(uA) | 7 | 7 | 7 | 7 | 7 |
Sleep(mA) | 2 | 2 | 2 | 2 | 2 | |
Idle(mA) | 15 | 15 | 15 | 15 | 15 | |
Data Transfer | ||||||
Cat-M(Kbps) | 300(DL)/375(UL) | 300(DL)/375(UL) | 300(DL)/375(UL) | 300(DL)/375(UL) | 300(DL)/375(UL) | |
Cat-NB(Kbps) | 34(DL)/66(UL) | 34(DL)/66(UL) | 34(DL)/66(UL) | 34(DL)/66(UL) | 34(DL)/66(UL) | |
EGPRS(Kbps) | 85.6(DL)/85.6(UL) | 85.6(DL)/85.6(UL) | 85.6(DL)/85.6(UL) | |||
Software Features | ||||||
Protocol | TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP | TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP | TCP/UDP/LWM2M/ COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP | TCP/UDP/LWM2M/ COAP/MQTT/ | TCP/UDP/LWM2M/COAP/ MQTT/FTP/ | |
FOTA | ● | ● | ● | ● | ● | |
Embedded AT | ● | ● | ● | ● | ● | |
Firmware Upgrade | USB | USB | USB | USB | USB | |
Interfaces | ||||||
SIM Card | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V | |
UART | One full modem UART | One full modem UART | One full modem UART | One full modem UART | One full modem UART | |
USB | USB2.0 | USB2.0 | USB2.0 | USB2.0 | USB2.0 | |
PCM | One PCM interface | One PCM interface | One PCM interface | One PCM interface | One PCM interface | |
I2C | One I2C interface | One I2C interface | One I2C interface | One I2C interface | One I2C interface | |
Certification | ||||||
Regulatory | RoHS/REACH/CCC/RCM/ CE(RED)/GCF/FCC/IC /OCD(Anatel) | RoHS/REACH/KC*/ RCM/CE(RED)/GCF | RoHS/REACH/GCF/ FCC/PTCRB/IC | RoHS/REACH/ JATE/Telec | RoHS/REACH/ CCC/NAL/SRRC | |
Carrier | Deutsche Telekom | KT*/LGU*/IMDA/TELSTRA /SPARK/Deutsche Telekom/Vodafone* | AT&T/Verizon | Docomo/KDDI | Mobile/Unicom/Telecom | |
