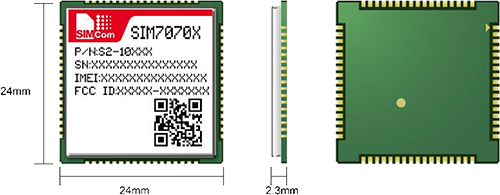

SIM7070系列是LPWA模块，支持Cat-M/Cat-NB/GPRS/EDGE的无线通信模式。SIM7070系列采用LCC外形，紧凑尺寸为24mm*24mm，非常适合紧凑型产品设计。SIM7070系列具有强大的可扩展性，具有丰富的接口，包括UART，GPIO，PCM，SPI，I2C等.SIM7070系列专为在各种无线电传播条件下需要低延迟，低吞吐量数据通信的应用而设计。由于性能，安全性和灵活性的独特组合，该模块非常适合M2M应用，如计量，资产跟踪，远程监控，电子健康等。
| Product | SIM7070G | SIM7070G-MN | SIM7070G-M | SIM7070G-HP | |
| Form factor | LCC, 68PIN | LCC, 68PIN | LCC, 68PIN | LCC, 68PIN | |
| Dimensions(mm) | 24*24*2.3 | 24*24*2.3 | 24*24*2.3 | 24*24*2.3 | |
| Frequency Bands | Cat-M | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85 | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85 | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85 | B1/B2/B3/B4/B5/B8/B12/B13/ B14/B18/B19/B20/B25/B26/ B27/B28/B66/B85* |
| Cat-NB | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/ B66/B71/B85 | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/ B66/B71/B85 | B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28/ B66/B71*/85* | ||
| GSM | 850/900/1800/1900MHz | ||||
| LTE RF Power Class | Class 5 (Typ. 21dbm) | Class 5 (Typ. 21dbm) | Class 5 (Typ. 21dbm) | Class 3 (Typ. 23dbm) | |
| GNSS | o | o | o | o | |
| Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |
| Electrical Features | |||||
| Supply Voltage Range(V) | 3.0~ 4.6 | 3.0~ 4.6 | 3.0~ 4.6 | 3.0~ 4.5 | |
| Power Consumption | @PSM(uA) | 3.2 | 3.2 | 3.2 | 4 |
| @Sleep(mA) | 0.8 | 0.8 | 0.8 | 0.8 | |
| @Idle(mA) | 10 | 10 | 10 | 10 | |
| Data Transfer | |||||
| Cat-M(Kbps) | 589(DL)/1119(UL) | 589(DL)/1119(UL) | 589(DL)/1119(UL) | 589(DL)/1119(UL) | |
| Cat-NB(Kbps) | 127(DL)/158.5(UL) | 127(DL)/158.5(UL) | 127(DL)/158.5(UL) | ||
| EGPRS(Kbps) | 296(DL)/236.8(UL) | ||||
| Software Features | |||||
| Protocol | TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT | TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT | TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT | TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT | |
| FOTA | ● | ● | ● | ● | |
| Embedded AT | ● | ● | ● | ● | |
| Firmware Upgrade | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | |
| Interfaces | |||||
| SIM Card | 1.8V | 1.8V | 1.8V | 1.8V | |
| UART | ● | ● | ● | ● | |
| USB | ● | ● | ● | ● | |
| PCM/I2S | ● | ● | ● | ● | |
| ADC | ● | ● | ● | ● | |
| SPI | ● | ● | ● | ● | |
| I2C | ● | ● | ● | ● | |
| Embedded SIM | o | o | o | o | |
| Certification | |||||
| Regulatory | RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC | RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC | RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC | RoHS\REACH\JATE\Telec\RCM\CE(RED)\GCF\Orange\TIM\Deutsche Telekom\Telefonica\Vodafone\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC | |
| Carrier | AT&T*/VERIZON*/ TMOBILE-US*/SPRINT*/ ROGERS*/TELSTRA*/VDF*/ SoftBank*/DoCoMo*/KDDI*/ | AT&T*/VERIZON*/ TMOBILE-US*/SPRINT*/ ROGERS*/TELSTRA*/VDF*/ SoftBank*/DoCoMo*/KDDI*/ | AT&T*/VERIZON*/ TMOBILE-US*/SPRINT*/ ROGERS*/TELSTRA*/VDF*/ SoftBank*/DoCoMo*/KDDI*/ | ||
