首页 > 产品中心 > SIMCom 芯讯通(代理) > LPWA模组

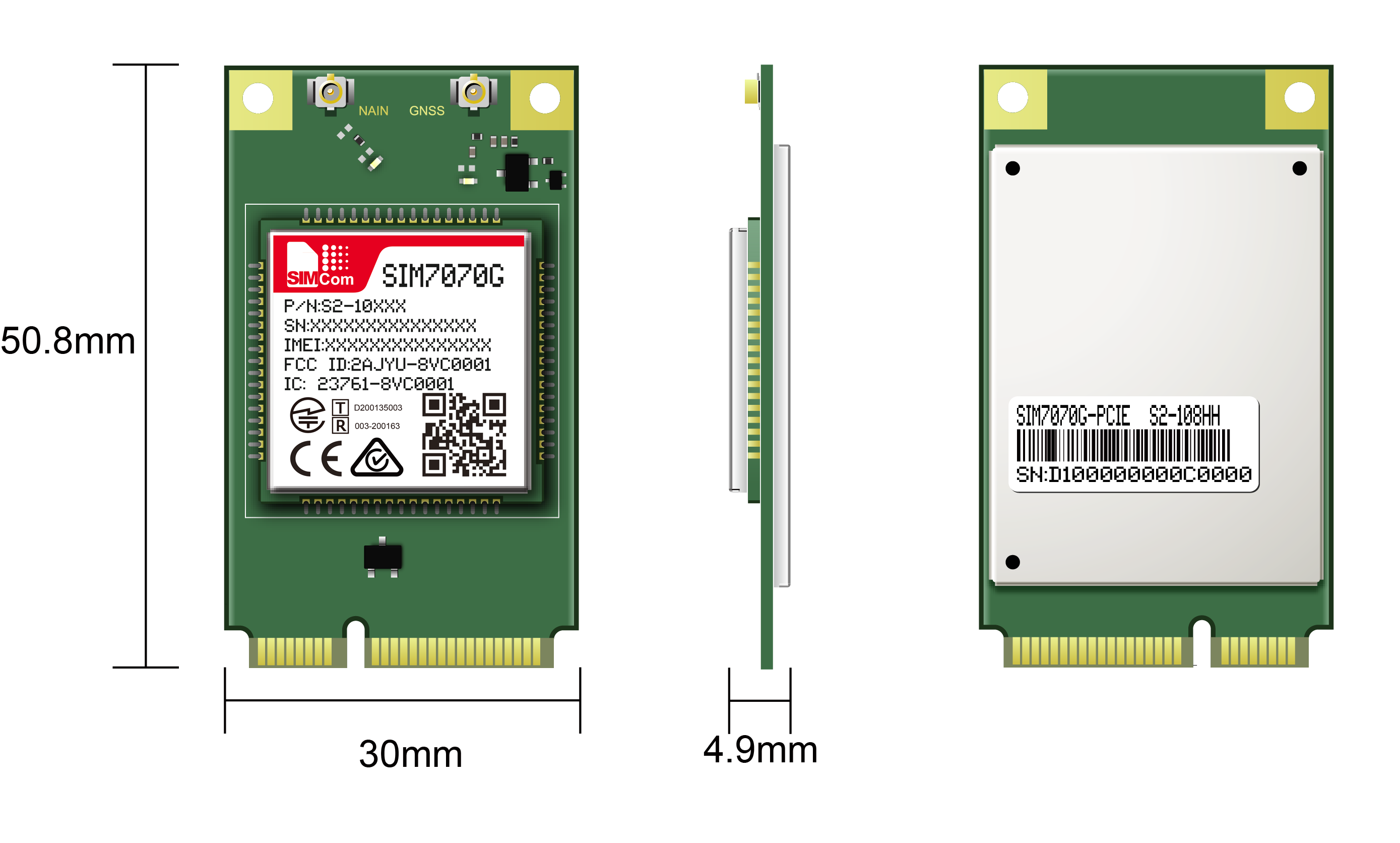

General Features Mini PCIE package: CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25 /B26/B27/B28/B66/B85 CAT-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25 /B26/B28/B66/B71/B85 LTE RF Power Class: 5 (Typ. 21dbm) GSM/GPRS: 850/900/1800/1900MHz Control Via AT Commands Supply voltage range: 3.3V~ 4.3V, Typ: 3.8V Operation temperature: -40°C to +85°C Dimensions: 50.8 X 30.0 X 5.2mm Weight: 10.0g Data LTE CAT-M(eMTC) - Uplink up to 1119kbps, Downlink up to 589kbps NB-IoT - Uplink up to 158.5kbps, Downlink up to 127kbps EDGE - Uplink up to 236.8Kbps, Downlink up to 296Kbps GPRS - Uplink up to 85.6Kbps, Downlink up to 85.6Kbps | Other Features USB Driver for Microsoft Windows XP/Vista/7/8/10 USB Driver for Linux Firmware update via USB TCP/IP UDP MQTT FTP/HTTP/SSL FOTA COAP Ayla Cloud Interfaces USB2.0 x1 (high-speed) UART x1 SIM card x1 (1.8V) PCM x1 | Consumption Sleep: 2mA Idle: 15mA Certifications FCC/IC/CE/RCM RoHS/ REACH |
